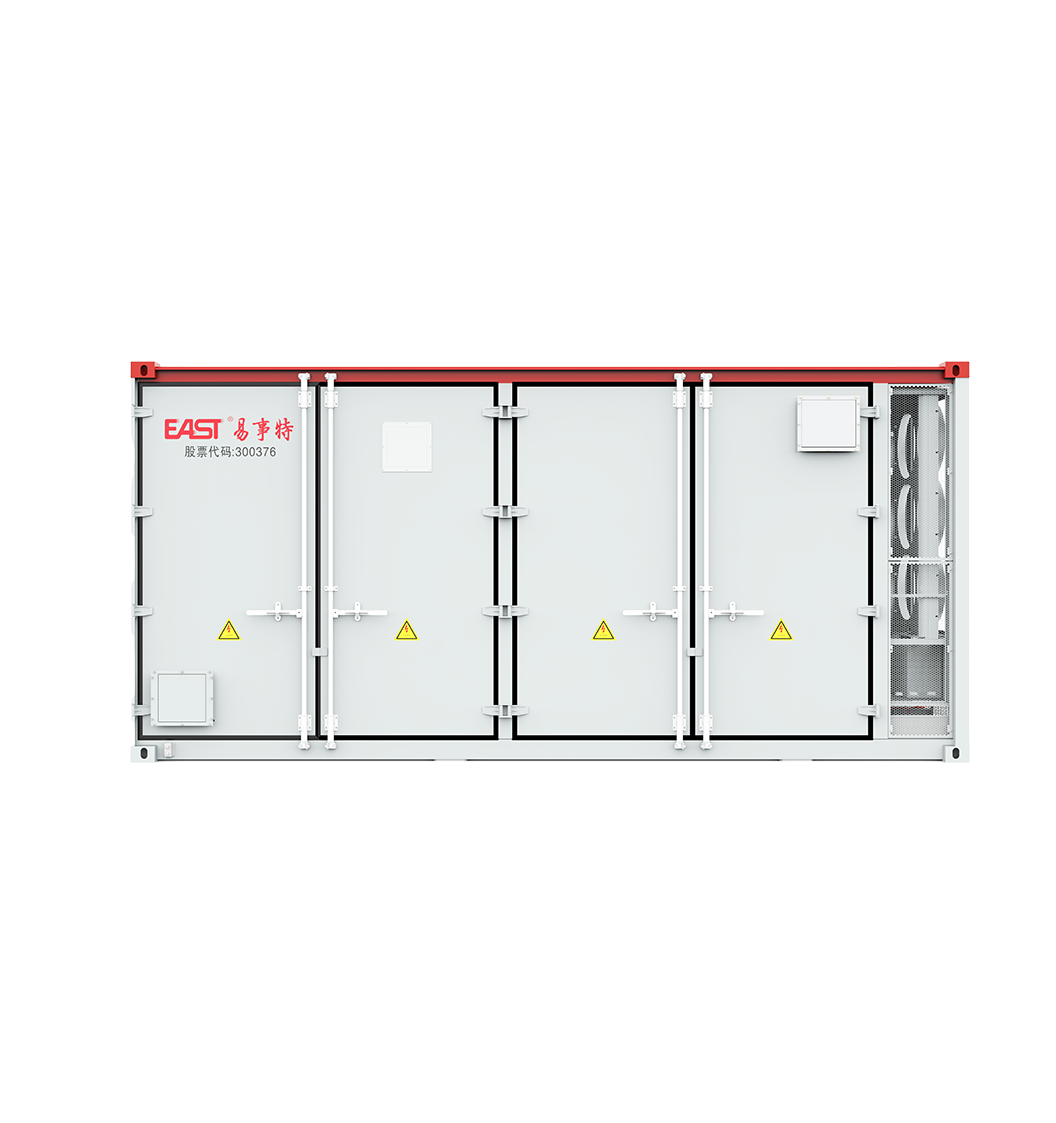

Utility Energy Storage System 2.5MW/5MWh
l The modular PCS solves the circulating current between battery racks
l The discharge amount of the whole life cycle is increased by 6~8%, LCOE reduced by 3%~5%
l 20’ standard container
l It increases energy density by 18%
l It reduces the footprint by 30%
l It reduces O&M time by 20%
MODEL | 2.5MW/5MWh Integrated AC and DC Energy Storage System |
AC-side | |
Rated AC output power | 2500kVA |
Max. AC output power | 2750kVA |
Max. output current | 2510A |
Number of AC input | 12 |
Rated output voltage | 690V |
Grid type | 3P+PE |
AC grid frequency | 50Hz(45Hz~55Hz) |
Grid voltage range | 586.5V-759V |
Power factor | >0.99(Rated Power) |
Adjustable reactive power factor range | -1~+1 |
AC current distortion rate | <3%(Rated Power) |
Isolation method | Non-isolated |
DC-side | |
Cell | LFP 3.2V/314Ah |
System battery configuration | 12P416S |
Battery rated capacity | 5015.96kWh |
Battery voltage range | 1123.2V~1497.6V |
System Parameters | |
Dimensions (W×H×D)(mm) | 6058x2896x2438 |
Weight | ≤48T |
Protection degree | IP54 |
Operating temperature range | -30°C~60°C |
Operating humidity range | 0%~95%(No Condensation) |
Max. operating altitude | 4000m |
Cooling method | Liquid Cooling |
Fire protection system | Flammable gas detection + active ventilation + PACK-level fire protection (optional) +water firefighting |
System communication interface | LAN |
External system communication protocol | Modbus TCP, IEC61850 |
Certification | GB/T-34120, GB/T-44026, UL9540A, IEC62619-2022, IEC63056-2020, IEC/EN62477-1-2023, IEC62933-1-2024, UL1973-2022, UN38.3, IEC61000-6-2, IEC61000-6-4, EN50549-2 |
Utility Energy Storage System 2.5MW/5MWh Datasheet - PDF
