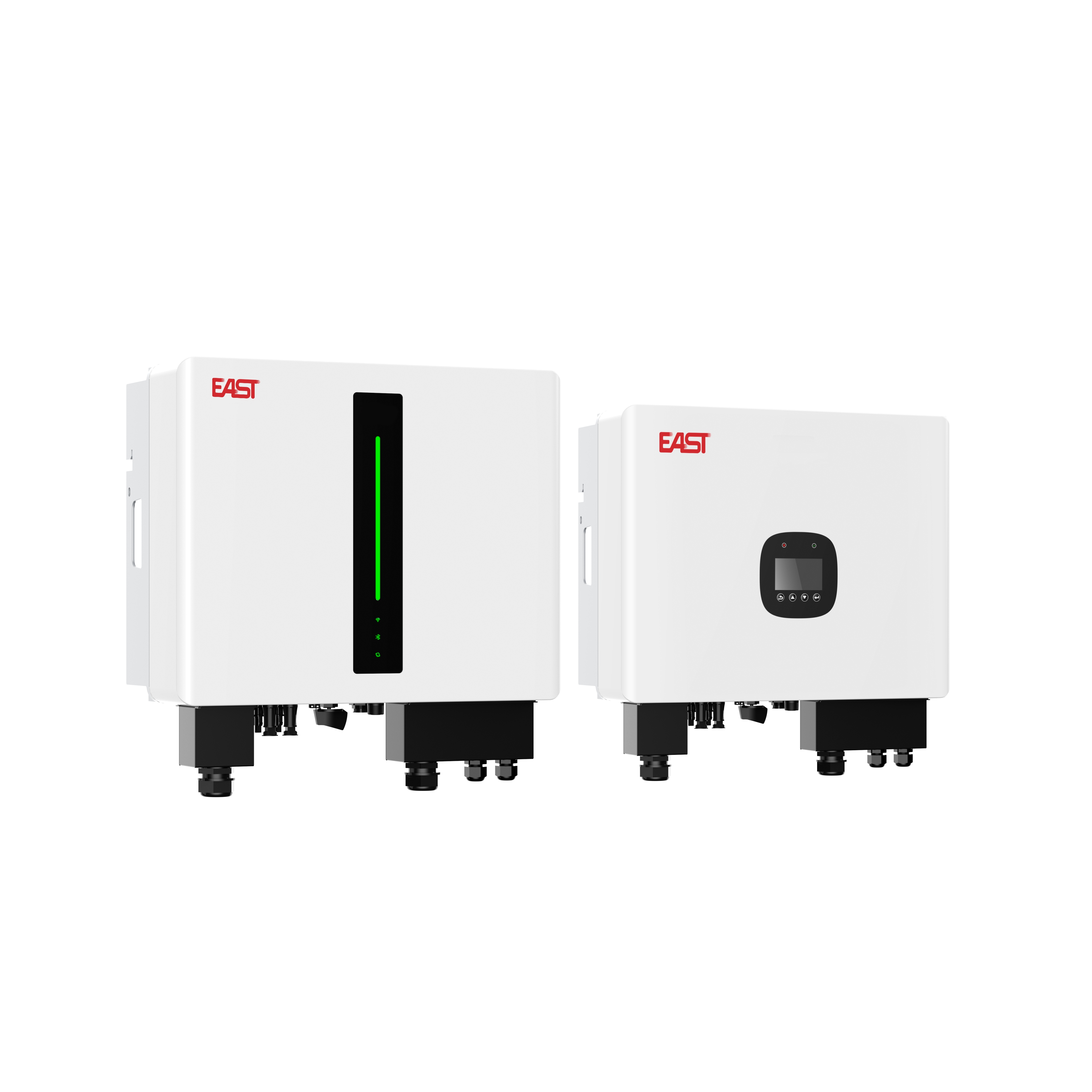

Residential Hybrid Inverter EAHI-3000-6000SL
● IP66 all-aluminum chassis, adaptable to outdoor environment
● High charge/discharge efficiency, compatible with lithium battery and lead-acid battery
● Flexibly settable charge/discharge time section and power, peak load shaving
● APP real time monitoring, easy maintenance
MODEL | EAHI-3000-SL | EAHI-3600-SL | EAHI-5000-SL | EAHI-6000-SL |
PV input | ||||
Max. input power | 4680W | 6500W | 7800W | |
Max. input voltage | 550Vdc | |||
Rated input voltage | 360Vdc | |||
Start-up voltage | 150Vdc | |||
Min. operating voltage | 100Vdc | |||
MPPT voltage range | 100~540Vdc | |||
Max. input current per MPPT | 16A | 16A / 16A | ||
Max. short-circuit current per MPPT | 24A | 24A / 24A | ||
Number of MPPT | 1 | 2 | ||
Number of input strings per MPPT | 1 | 1/1 | ||
Battery input | ||||
Battery type | Li-ion, Lead-acid battery | |||
Voltage range | 42~58Vdc | |||
Max. charge current | 66A | 75A | 100A | 100A |
Max. discharge current | 66A | 75A | 100A | 120A |
Charging curve | 3 Stages / Equalization | |||
Lithium battery charging strategy | BMS self-adaption | |||
AC input (Grid) | ||||
Grid type | Single phase(L/N/PE) | |||
Input voltage range | 184~276Vac | |||
Input frequency range | 50±5Hz / 60±5Hz | |||
Max. input current | 21.8A | 26.2A | 36.5A | 40A |
AC output (Grid) | ||||
Rated output power | 3000W | 3600W | 5000W | 6000W |
Max. apparent output power | 3000VA | 3600VA | 5000VA | 6000VA |
Grid system mode | Single phase(L+N+PE) | |||
Rated output voltage | 220Vac / 230Vac | |||
Rated output frequency | 50Hz / 60Hz | |||
Rated output current | 13.6A / 13.0A | 16.4A / 15.7A | 22.7A / 21.8A | 27.3A / 26.1A |
Max. output current | 13.6A | 16.4A | 22.7A | 27.3A |
Power factor | >0.99 (0.8 leading ~ 0.8 lagging) | |||
THDi | ≤3% (@ Rated Power) | |||
AC output (Back-up) | ||||
Rated output power | 3000W | 3600W | 5000W | 6000W |
Max. apparent power | 3000VA | 3600VA | 5000VA | 6000VA |
Output system mode | Single phase(L+N+PE) | |||
Rated output voltage | 230Vac (208/220/240Vac settable) | |||
Rated output frequency | 50Hz / 60Hz | |||
Rated output current | 13.0A | 15.7A | 21.8A | 26.1A |
Max. output current | 14.4A | 17.3A | 24.0A | 28.8A |
THDv | ≤3% (linear load) | |||
Transfer time | ≤10ms | |||
Efficiency | ||||
Max. efficiency | 97.8% | |||
MPPT efficiency | 99.9% | |||
Protections | ||||
Protections | Over/under voltage, over/under-frequency, over load, output short-circuit, over temperature, residual current monitoring unit, output over-current, insulation resistance, anti islanding, surge protection | |||
Output overvoltage protection | DC Type II/AC Type III | |||
Others | ||||
Communications | RS485, WIFI | |||
Dimensions (W×H×D)(mm) | 548x440x197 | |||
Net weight (kg) | 21.4 | 24.8 | ||
Topology | High frequency isolation(for battery) | |||
IP rating | IP66 | |||
Operating temperature | -25℃~+60℃(>45℃ derating) | |||
Cooling mode | Natural cooling | |||
Altitude | 4000m | |||
Noise level at 1 m | ≤25dB | |||
Installation mode | Wall-mounted | |||
Standards | ||||
Safety regulation | IEC/EN 62109-1/-2, AS62109 | |||
EMC | EN 61000-6-1/-2/-3/-4 | |||
Grid connection | CEI 0-21, DIN VDE V 0124-100:2020, VDE-AR-N 4105:2018, AS4777.2, NRS097-2-1, EN 50549-1 | |||
