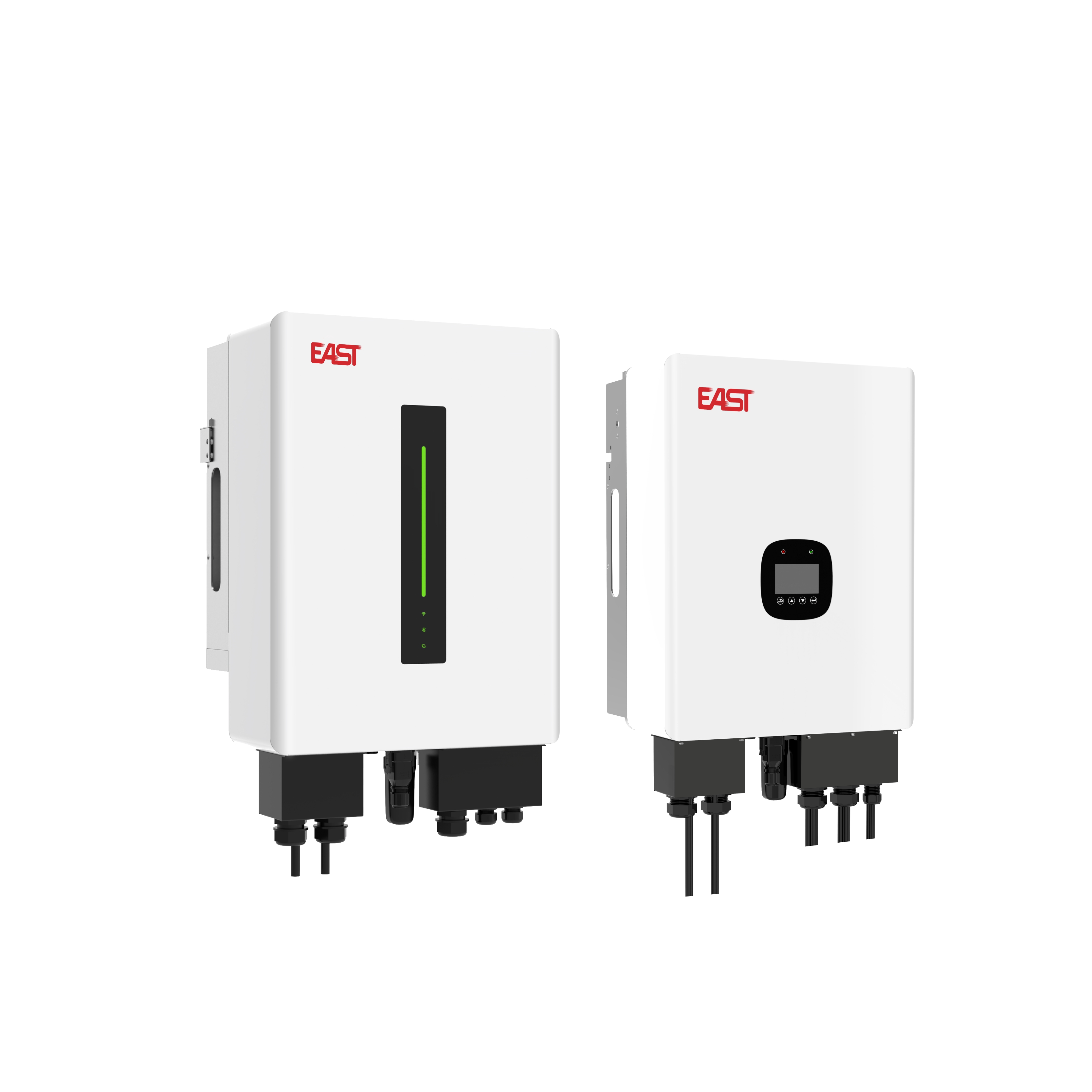

Residential Hybrid Inverter EAHI10-12KSL
● Supports PV inverter, generators, and microgrid inputs, suitable for new and modified photovoltaic and microgrid systems
● Supports multiple inverters with EPS output in parallel, and can be expanded to small industrial and commercial applications
● Mains and PV input power oversized at a ratio of 1.5, resulting in a more stable system operation
● Support RSD and AFCI optional configurations to provide safer protection for the system
MODEL | EAHI10KSL | EAHI12KSL |
PV input | ||
Max. input power | 18kW | 18kW |
Max. open-circuit voltage | 550Vdc | |
Rated input voltage | 360Vdc | |
Start-up voltage | 150Vdc | |
Min. operating voltage | 100Vdc | |
MPPT voltage range | 100~540Vdc | |
Full power MPPT voltage range | 300V~500V | |
Max. input current per MPPT | 30A/30A | |
Max. short-circuit current per MPPT | 40A/40A | |
MPPT quantity | 2 | |
Number of input strings per MPPT | 2/2 | |
Battery input | ||
Battery type | Li-ion battery / Lead acid battery | |
Voltage range | 42~58Vdc | |
Max. charge/discharge current | 180A/180A | 250A/250A |
AC input and output (Grid) | ||
Max. apparent power of grid | 15kVA | 18kVA |
Max. input current | 68.2A | 81.8A |
Input voltage range | 184~276Vac | |
Input frequency range | 50±5Hz | |
Rated output power | 10kW | 12kW |
Max. output apparent power | 10kVA | 12kVA |
Rated output voltage | 1/N/PE, 220/230Vac | |
Rated output frequency | 50Hz | |
Rated output current | 45.5A / 43.5A | 54.5A / 52.2A |
Max. output current | 45.5A | 54.5A |
Power factor | >0.99 (0.8 leading ~ 0.8 lagging) | |
THDi | ≤3% (@ rated power) | |
Generator input | ||
Max. input power | 10kW | 12kW |
Max. input current | 45.5A | 54.5A |
AC output (Back-up) | ||
Rated output power | 10kW | 12kW |
Max. apparent power | 10kVA | 12kVA |
Rated output voltage | 1/N/PE, 220Vac/230Vac | |
Rated output frequency | 50Hz | |
Rated output current | 45.5A / 43.5A | 54.5A / 52.2A |
Max. output current | 45.5A | 54.5A |
THDv | ≤3% (linear load) | |
Switching time | ≤20ms | |
Efficiency | ||
Max. efficiency | 97.8% | |
MPPT efficiency | 99.9% | |
Protections | ||
Protections | Over/under voltage, over/under-frequency, overload, output short-circuit, over temperature, residual current monitoring unit, output over-current, insulation resistance detection, anti-islanding, surge protection | |
Surge protection | DC Type II/AC Type II | |
Others | ||
Dimensions (W×H×D)(mm) | 450x600x270 | |
Weight (kg) | 45 | |
Topology | High frequency isolation (for battery) | |
IP rating | IP66 | |
Operating temperature | -25℃~+60℃ | |
Cooling mode | Smart cooling | |
Altitude | 3000m | |
Noise level at 1m | ≤55dB | |
Installation method | Wall-mounted | |
Standards | ||
Safety regulation | IEC/EN 62109-1/-2, AS62109 | |
EMC | EN 61000-6-1/-2/-3/-4 | |
Grid connection | NRS097-2-1:2017 | |
