Residential Hybrid Inverter EAHI6KSL-S
● 314AH battery cell, built-in DCDC optimizer, high cycle life and long lifespan
● IP66 stainless steel enclosure, waterproof and dustproof

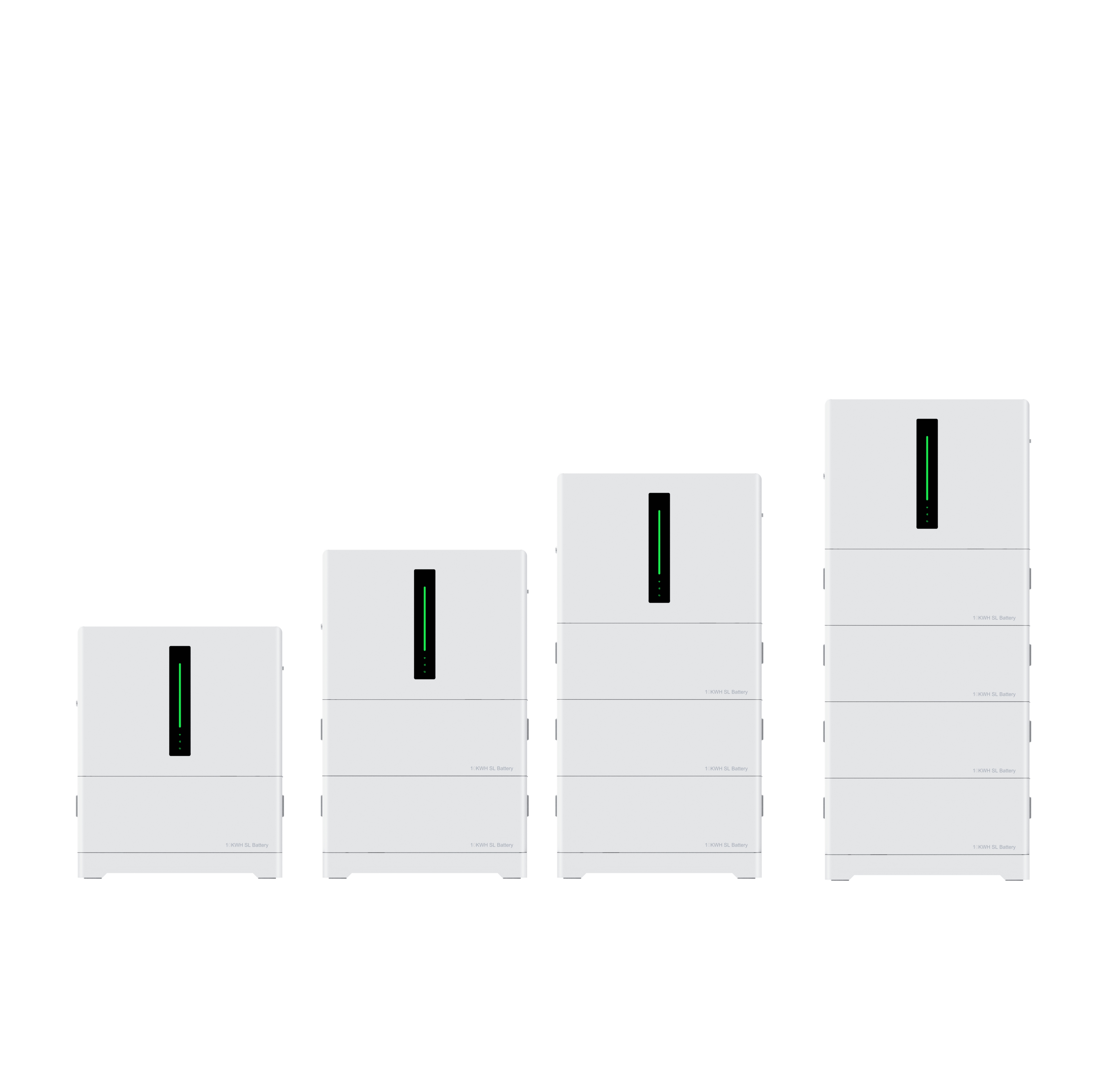

● Stacking design for easy installation
● Flexible expansion of battery capacity
● Cell level, package level and system level multiple protections
● Module plug-and-play, automatic recognition
● Seamless switching of emergency mode to ensure that loads do not power down
● Supports independent input of photovoltaic inverters and generators, supports AC coupling of charging stations and various photovoltaic storage systems
● Security and stability, 24-hour intelligent monitoring
Hybrid Inverter Specification
MODEL | EAHI6KSL-S |
PV input parameter | |
Max. input power | 8000W |
Max. input voltage | 550Vdc |
Starting voltage | 150Vdc |
Max. input current | 16/16A |
Short circuit current | 24/24A |
Number of input strings per MPPT | 1/1 |
AC input/output parameters (grid side) | |
Input voltage range | 184~276Vac |
Input frequency range | 50±5Hz / 60±5Hz |
Max. input current | 40A |
Rated output power | 6000W |
Max. apparent output power | 6000VA |
Grid system mode | 1/N/PE |
Rated output voltage | 220Vac / 230Vac |
Rated output frequency | 50Hz / 60Hz |
Rated output current | 27.3A / 26.1A |
Power factor | >0.99 (0.8 lead ~ 0.8 lag) |
AC output parameters (back-up side) | |
Rated output power | 6000VA/6000W |
Grid system mode | 1/N/PE |
Rated output voltage | 230Vac (208/220/240Vac settable) |
Rated output frequency | 50Hz / 60Hz |
Rated output current | 27.3A / 26.1A |
THDv | ≤3% (linear load) |
Switching time | ≤10ms |
Efficiency | |
Maximum efficiency | 97.8% |
MPPT efficiency | 99.9% |
Protection | |
Comprehensive | Grid over-voltage protection, grid over-frequency protection, grid overload protection, over-temperature protection, anti-islanding protection, insulation resistance detection, residual current monitoring unit, output over-current protection, output short-circuit protection, surge protection |
Surge protection | DC Type II/AC Type III |
Inverter standard | |
LVD | IEC/EN 62109-1/-2, AS62109 |
EMC | EN 61000-6-1/-2/-3/-4 |
Grid-tied | CEI 0-21, DIN VDE V 0124-100:2020, VDE-AR-N 4105:2018, NRS097-2-1, EN 50549-1, G99/1-9:2022, ETSI EN303645+PSTI, C10/11:2021, XP C 15-712-3:2019, ELOT EN 50549-1:2019, PEA |
Inverter other parameters | |
Dimensions (W×H×D)(mm) | 700×530×405 |
Weight (kg) | 41.4 |
Battery specification
MODEL | EHB48314D10S1P |
Cell technology | LiFePO4 |
Battery voltage | 51.2Vdc |
Max. expandable number | 4 |
Energy capacity | 10kWh |
Cell type | 314Ah |
Scalable capacity range | 10kWh~40kWh |
DOD | Max. 100% DOD (settable) |
Max. charging power | 5KW@1 module, 6kW@>1 module |
Max. discharging power | 5KW@1 module, 6kW@>1 module |
Max. charging current | 100A |
Max. discharge current | 105A@1 module, 120A@>1 module |
Communication interface | 485 and CAN |
Certification | IEC 62619, IEC 63056, UN 38.3 |
Dimensions (W×H×D)(mm) | 700×250×405 |
Weight (kg) | 83 |
Base parameters | |
Dimensions (W×H×D)(mm) | 700×81.5×405 |
Weight (kg) | 4.8 |
