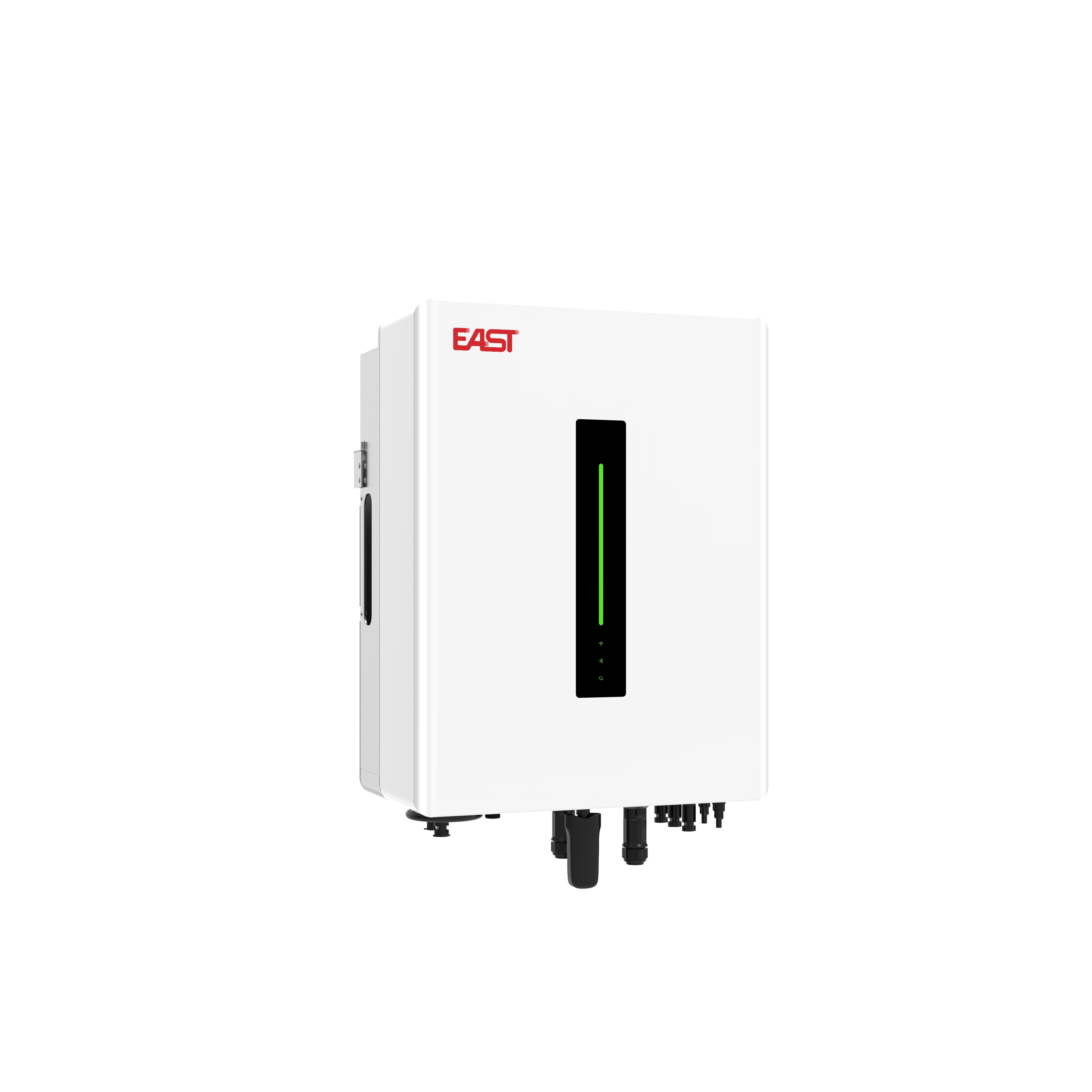

Residential Hybrid Inverter EAHI10-20KTH
● Supports PV inverter, generators, and microgrid inputs, suitable for new and modified photovoltaic and microgrid systems
● App real-time monitoring, supports online remote OTA upgrades, easy operation and maintenance
● Mains and PV input power oversized at a ratio of 1.5, resulting in a more stable system operation
● Support RSD and AFCI optional configurations to provide safer protection for the system
MODEL | EAHI10KTH | EAHI15KTH | EAHI20KTH |
PV input | |||
Max. input power | 20kW | 30kW | 30kW |
Max. input voltage | 1000Vdc | ||
Rated input voltage | 650Vdc | ||
Start-up voltage | 180Vdc | ||
Min. operating voltage | 160Vdc | ||
MPPT voltage range | 160~950Vdc | ||
Full power MPPT voltage range | 625-800V | ||
Max. input current per MPPT | 16A/16A | 16A/32A | |
Max. short-circuit current per MPPT | 24A/24A | 24A/48A | |
Number of MPPTs | 2 | ||
Number of input strings per MPPT | 1/1 | 1/2 | |
Battery input | |||
Battery type | Lithium battery | ||
Voltage range | 150~600Vdc | ||
Max. charge/discharge current | 25A | 37.5A | 50A |
AC input and output (Grid) | |||
Max. apparent power of grid | 15kVA | 22.5kVA | 30kVA |
Max. input current | 22.8A | 34.2A | 40.0A |
Input voltage range | 320~480Vac | ||
Input frequency range | 50±5Hz / 60±5Hz | ||
Rated output power | 10kW | 15kW | 20kW |
Max. output apparent power | 11kVA | 16.5kVA | 22kVA |
Rated output voltage | 3/N/PE, 380Vac/400Vac | ||
Rated output frequency | 50Hz/60Hz | ||
Rated output current | 15.2A/14.4A | 22.8A/21.7A | 30.4A/29.0A |
Max. output current | 16.7A/15.8A | 25.1A/23.8A | 33.5A/31.8A |
Power factor | >0.99 (0.8 leading ~ 0.8 lagging) | ||
THDi | ≤3% (@ rated power) | ||
Generator input | |||
Max. input power | 10kW | 15kW | 20kW |
Max. input current | 15.2A | 22.8A | 30.4A |
AC output (Backup) | |||
Rated output power | 10kW | 15kW | 20kW |
Max. apparent power | 10kVA | 15kVA | 20kVA |
Rated output voltage | 3/N/PE, 380Vac/400Vac | ||
Rated output frequency | 50Hz/60Hz | ||
Rated output current | 15.2A/14.5A | 22.8A/21.7A | 30.4A/29.0A |
Max. output current | 15.2A | 22.8A | 30.4A |
THDv | ≤3% (linear load) | ||
Switching time | ≤10ms | ||
Efficiency | |||
Maximum efficiency | 98.2% | ||
MPPT efficiency | 99.9% | ||
Protections | |||
Protections | Over/under voltage, over/under frequency, overload, output short-circuit, over-temperature, residual current monitoring unit, output overcurrent, insulation resistance detection, anti-islanding, surge protection | ||
Surge protection | DC Type II/AC Type III | ||
Others | |||
Dimensions (W×H×D)(mm) | 500×680×270 | ||
Packaged dimensions (W×H×D)(mm) | 615×885×370 | ||
Net weight (kg) | 41 | ||
Gross weight (kg) | 47 | ||
Parallel operation | Supports 6 units in parallel connection | ||
Topology | Non-isolated | ||
IP rating | IP66 | ||
Operating temperature | -25℃~ +60℃ | ||
Cooling mode | Natural cooling | Smart cooling | |
Altitude | 3000m | ||
Noise level (1m) | ≤25dB | ≤45dB | ≤50dB |
Installation method | Wall-mounted | ||
Standards | |||
Grid connection | VDE 0126, EN50549, DIN VDE V 0124-100:2020, VDE-AR-N 4105:2018 | ||
Safety regulation | IEC/EN 62109-1/-2 | ||
EMC | EN 61000-6-1/-2/-3/-4 | ||
